Why KVM Needs the CPU: ARM64 EL2, VHE, and the Virtualization Extension
The previous article established that KVM is a kernel module that turns the running Linux kernel into a hypervisor.
That description is accurate but incomplete, and the gap is where a lot of otherwise-solid mental models come apart. A kernel can’t simply decide to run guest operating systems at native speed. It needs the CPU’s cooperation — a hardware feature that sits dormant in the silicon until software switches it on.
This article is about that feature: what problem it solves, what it looks like on ARM64, and how it relates to the kernel module. The relationship between those last two is the part worth getting right, because “is virtualization hardware or software?” has an answer that isn’t either.
The problem: a guest kernel wants to run privileged instructions
Recall the lie from the previous article — every guest OS believes it owns the hardware. That belief has teeth. A kernel doesn’t just think it’s in charge; it executes instructions that only something in charge is allowed to execute. It reconfigures page tables. It writes to device registers. It masks and unmasks interrupts. It sets up the memory management unit.
Now put that kernel in a VM. It’s going to attempt all of those things, because that’s what kernels do at boot. Two options present themselves, and both are bad.
Option one: let it run them on the real CPU. The guest reconfigures the actual MMU, writes to actual device registers, and takes down the host and every other guest with it. Non-starter.
Option two: catch every instruction in software. Inspect each one before it executes, and when it’s privileged, emulate its effect against fake state instead of letting it touch hardware. This works — it’s genuinely how software-only virtualization operates — but the cost is enormous. Software is now involved in every single instruction the guest runs, including the overwhelming majority that are perfectly harmless arithmetic and branches.
The insight that makes modern virtualization viable is that neither option is necessary if the CPU itself can tell the difference.
The fix is in the silicon
Modern CPUs ship with a virtualization extension: a hardware feature that adds a privilege level above the normal kernel level, designed specifically for a hypervisor to occupy.
With it, the guest kernel runs at its usual privilege level, fully believing it’s in charge. Its ordinary instructions — the arithmetic, the branches, the memory accesses — execute directly on a real core at full speed, with no software involvement whatsoever. But the moment it attempts something that would affect real hardware, the CPU traps: it freezes the guest and transfers control up to the hypervisor.
This is the crucial economic property. The expensive interventions happen only on privileged operations, which are rare. Everything else runs native. Software stops babysitting and starts handling exceptions.

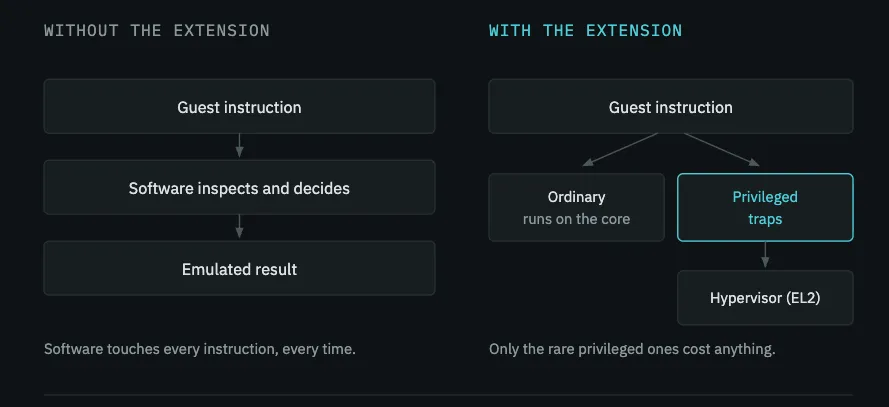

WITHOUT the CPU extension WITH it
(pure software emulation)
guest instruction guest instructions
│ │ │ │ │ │
software inspects each one run DIRECTLY on the core
│ (slow, every time) │ │ │ │ │ (full speed)
software decides what to do │
│ only a privileged one
emulated result causes a trap → hypervisor
│
hypervisor handles just that oneThat trap is the VM exit, and it’s the single most important event in the whole stack. This article establishes what causes one and why it exists; the mechanics of what happens during one — how control actually returns to userspace, what data crosses the boundary, and why some exits are far cheaper than others — are the subject of article 5.
ARM64’s privilege levels, and the x86 equivalents
ARM calls its privilege levels Exception Levels, abbreviated EL. Higher numbers mean more privilege, which is the opposite of x86’s ring numbering and a reliable source of confusion when moving between the two.
ARM64 x86
┌─────────────────┐ ┌──────────────────┐
│ EL2 hypervisor │ ◄─── │ root mode (VT-x) │ ← KVM runs here
├─────────────────┤ ├──────────────────┤
│ EL1 OS kernel │ │ ring 0 kernel │ ← guest kernel
├─────────────────┤ ├──────────────────┤
│ EL0 user apps │ │ ring 3 apps │ ← guest apps
└─────────────────┘ └──────────────────┘A guest’s applications run at EL0. The guest kernel runs at EL1, where it has always expected to run, and where it can do everything a kernel normally does. Above it sits EL2, the hypervisor level, which the guest cannot see or reach.
On x86 the same concept is called VT-x on Intel and AMD-V on AMD, and the additional level is described as “root mode” rather than given a number. The naming differs; the structure is the same. If you know x86 virtualization, EL2 is your root mode.
There’s a fourth level on ARM — EL3, for secure-world firmware — which is outside the scope of virtualization and not something KVM touches.
VHE: why EL2 alone wasn’t enough
Here’s a wrinkle specific to ARM, and it explains a line you’ll see in your boot log.
The original ARM virtualization design assumed the hypervisor would be a small, purpose-built piece of software living at EL2 — essentially a Type-1 hypervisor in the classic sense. EL2 was designed for that: a lean environment with its own register set, deliberately unlike EL1.
Linux is not that. Linux is a large general-purpose kernel written to run at EL1, and KVM is a module inside it. Under the original design, running KVM meant awkwardly splitting the kernel — most of Linux at EL1, with a small stub at EL2 handling world switches. It worked, but every transition between the two carried overhead, and the split was structurally unpleasant.
VHE — Virtualization Host Extensions — fixed this. Introduced in ARMv8.1, VHE makes EL2 capable of running an ordinary EL1-style kernel directly, by remapping registers so that a kernel written for EL1 can execute at EL2 without modification. The host kernel, KVM included, runs entirely at EL2. Guests run at EL1 below it. No split, no stub, fewer transitions.
The practical upshot: on VHE-capable hardware, KVM runs in its efficient configuration. On older ARM cores without it, KVM still works, using the split approach. The Cortex-A76 in the Raspberry Pi 5 supports VHE, and the kernel says so at boot.
Seeing it on real hardware
Here’s the boot log from a Raspberry Pi 5 running Raspberry Pi OS Bookworm, kernel 6.12 aarch64:
$ dmesg | grep -i kvm
[ 0.046684] kvm [1]: nv: 554 coarse grained trap handlers
[ 0.046799] kvm [1]: IPA Size Limit: 40 bits
[ 0.046811] kvm [1]: GICV region size/alignment is unsafe, using trapping (reduced performance)
[ 0.046835] kvm [1]: vgic interrupt IRQ9
[ 0.046846] kvm [1]: VHE mode initialized successfullyEvery concept in this article is visible in those five lines.
VHE mode initialized successfully is the one that matters most. It confirms not just that KVM found a usable virtualization extension, but that it’s running in the modern configuration described above — host kernel at EL2, no split. This is the exact moment the dormant silicon feature was switched on, recorded in the boot log.
IPA Size Limit: 40 bits refers to the Intermediate Physical Address space — the guest’s view of physical memory. When a guest accesses what it believes is a physical address, that’s an IPA, which hardware then translates to a real host physical address. Forty bits is a terabyte of addressable guest physical memory, which is not a constraint on an 8 GB machine.
vgic interrupt IRQ9 and the GICV line concern the GIC, ARM’s Generic Interrupt Controller — the hardware that routes “a device needs attention” signals. Guests need interrupts too, so KVM virtualizes the GIC. The x86 equivalent is the APIC. This shows up again later as a <gic version='3'/> element in domain XML.
The GICV region size/alignment is unsafe, using trapping (reduced performance) line is a Raspberry Pi–specific quirk worth being unbothered by. One optimization for injecting interrupts directly into guests isn’t safely available on this hardware, so KVM falls back to trapping them. It does not affect whether acceleration works — it makes one specific interrupt path slightly slower. It is not something to chase.
nv: 554 coarse grained trap handlers refers to nested virtualization support — running a hypervisor inside a guest. Not relevant to anything in this series, but harmless to see.
The part that trips people up: silicon or software?
Now the question this article exists to answer. If virtualization is a CPU feature, why is KVM a kernel module? And if KVM is a kernel module, what is the CPU actually contributing?
They are two halves of one mechanism, and neither accomplishes anything alone.
The CPU extension is a dormant hardware capability. EL2 exists in the Cortex-A76 the moment it leaves the factory. It is baked into the silicon and does nothing on its own. It’s a feature waiting for software to claim it — an engine with no driver.
The KVM module is the software that claims and drives it. When KVM initializes, this is the sequence:

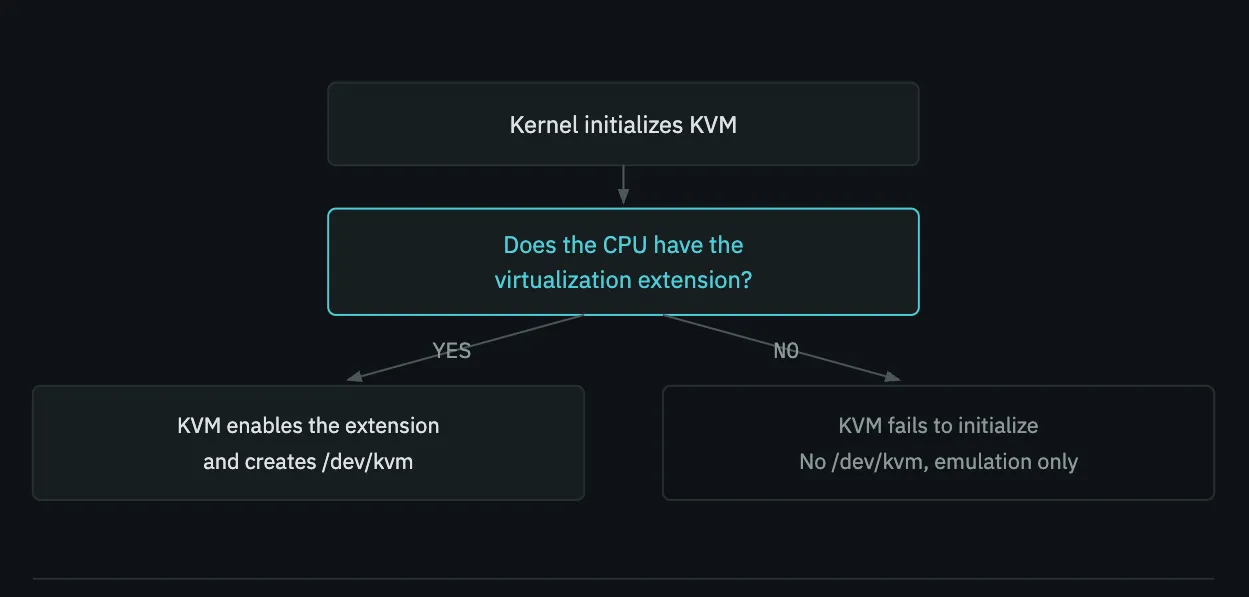

1. the kernel initializes KVM (built in or loaded as a module)
│
▼
2. KVM asks the CPU:
"do you have the virtualization extension?"
│
┌────┴─────┐
│ │
YES NO
│ │
▼ ▼
3a. KVM 3b. KVM fails to initialize,
enables /dev/kvm never appears,
it, creates and your only option is
/dev/kvm software emulationSo the answer to “is virtualization hardware or software” is that it’s a partnership with a strict dependency. The extension without KVM is an unused silicon feature. KVM without the extension has no job — it exists solely to drive that hardware, and it will refuse to initialize on a CPU that lacks it.
This dependency has a useful consequence: the existence of /dev/kvm is proof the whole chain worked. That file is created only when KVM has successfully initialized against a real virtualization extension. If it’s there, the silicon feature is present, the software found it, and the door is open. That’s why every KVM troubleshooting guide starts by checking for it, and it’s the first command in article 7.
What happens when the extension is absent
Worth stating explicitly, because it clarifies the boundary. If a CPU has no virtualization extension, you are not stuck — you’re just slow.
QEMU is a complete machine emulator independent of KVM. It can emulate a CPU entirely in software, instruction by instruction, with no hardware assistance at all. It works. It’s simply far slower, because software is translating guest instructions rather than letting them run on a real core.
QEMU alone = full machine in software → works, slow
QEMU + KVM = QEMU does devices, → works, fast
KVM rides the CPU extension
for CPU and memory
KVM alone = impossible — KVM only does CPU and memory.
It can't be a disk or a NIC. It always needs QEMU.That third line is the setup for the next article, and there’s a consequence of the second worth stating now because it’s specific to ARM64 hosts.
KVM can only accelerate guests whose instruction set matches the host’s. An aarch64 guest on an ARM64 host runs natively — the Cortex-A76 executes the guest’s instructions directly, so KVM applies and it’s fast. An x86 guest on the same host cannot: those aren’t ARM instructions, and no extension makes a real ARM core execute them. QEMU falls back to full software translation.
This isn’t a limitation of KVM or of the Raspberry Pi. It’s the boundary of what hardware acceleration means. Acceleration requires the guest and host architectures to match; when they don’t, you’re emulating, and emulation is slow. Anything in this series involving KVM assumes aarch64 guests.
Summary
- A guest kernel executes privileged instructions. Letting them touch real hardware is unsafe; catching every one in software is slow.
- CPU virtualization extensions solve this by adding a privilege level above the kernel. Guest code runs natively until it does something privileged, which traps to the hypervisor. That trap is a VM exit.
- On ARM64 the hypervisor level is EL2, above EL1 (kernel) and EL0 (user). The x86 equivalent is VT-x/AMD-V root mode.
- VHE lets a full Linux kernel run at EL2 unmodified, which is the efficient configuration KVM uses on modern ARM cores.
dmesgreports it at boot. - The silicon extension and the KVM module are partners: the extension is dormant hardware, KVM is the software that switches it on. Neither works alone, and KVM refuses to initialize without it.
/dev/kvmexisting is proof the partnership succeeded.- KVM only accelerates guests matching the host architecture. x86 guests on ARM64 fall back to slow software emulation.
